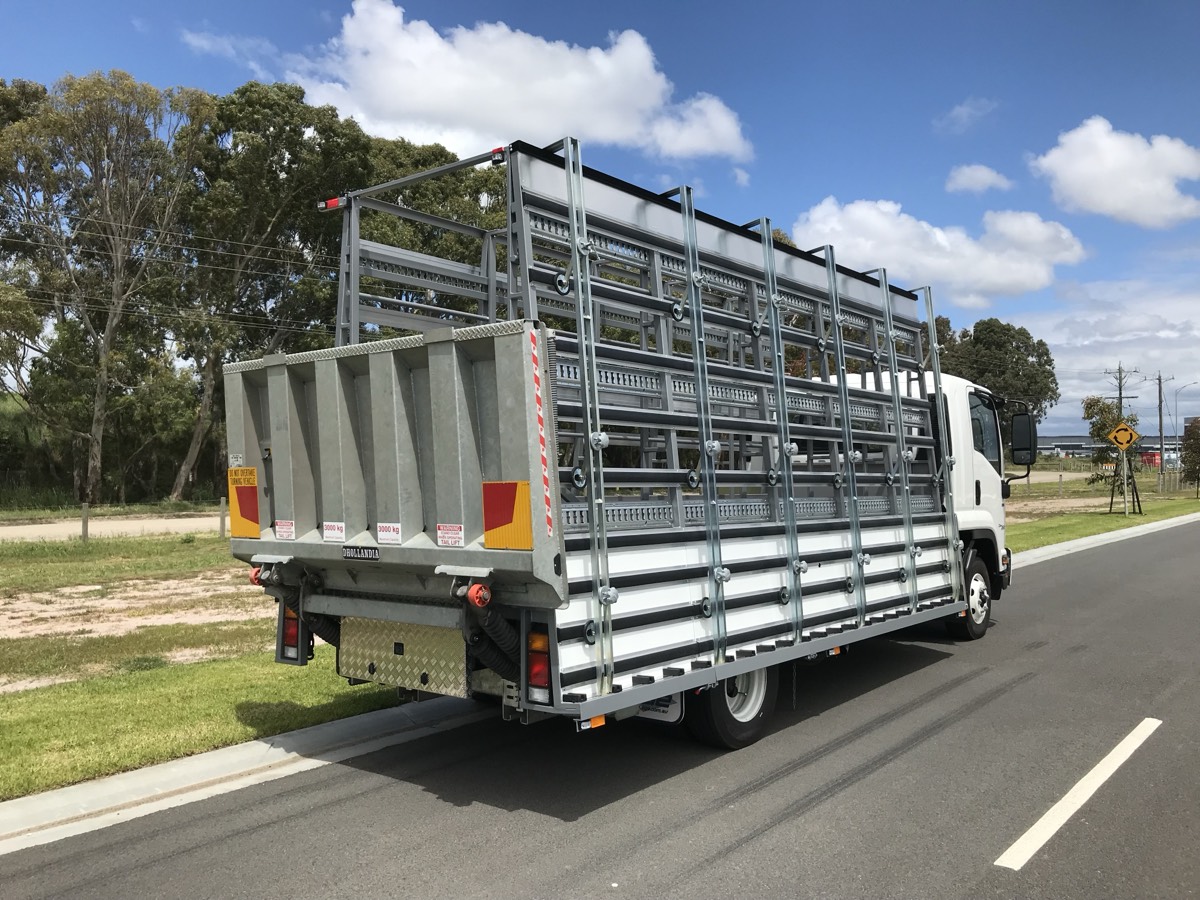

Split Step Glazing/Window Rack for Isuzu FRR (T-1044)

Introducing the Z 800-2655SWR Split Step Glazing/Window Rack (T-1044), meticulously designed for the Isuzu FRR 110/260 MWB. This innovative rack features a split-step design with distinct configurations for the driver and passenger sides, optimizing both safety and accessibility for heavy glazing materials.

Driver Side Specifications:

• Height & Length: 2665mm high x 5000mm (approx.) long.
• Usable Step: Approx. 85mm.
• Clamp Bars: 6 x Standard 2665mm high clamp bars, including 3 x winders per bar.
• J-Bracket: Standard J-Bracket to top of Clamp bar (Overall 235mm), with a 60mm tongue at the base.
• Winder System: Provision for 3 x Winders/Gearboxes per bar, evenly spaced. Turn wheels fitted to all gearboxes, 250mm Thrust arm.

Passenger Side Specifications:

• Height & Length: 2200mm high x 5000mm (approx.) long.
• Usable Step: 600mm deep (approx.).
• Cargo Track: 3 Rows Cargo track Full length to external Passenger side of rack, including strap kit.

Construction Details:

• Frame: Pre-coated Duragal Steel frame construction, supplied standard in a Painted finish (Silver).
• Flooring: Merbau decking floorboards.
• Sign Panels: Mill finish Aluminium Sign panels along top of rack.
• Cushioning: Continuous Rubber Cushioning Mouldings fitted to Custom BGE (Mill finish) Aluminium support rails.
• Side/Skirt Panels: White Colourbond Lower Side/Skirt Panels.
• Access: Removable panel for access to rear wheels.
• Steps: High density Channel rubber fitted to steps.
• Bumper: Aluminium Chequer plate panelled Rear Bumper.
• Deflectors: Forward Deflector, 800mm high set at 15° to end of rack.
• Certification: VASS included.

Additional Options:

• Hydraulic Tailgate: Hydraulic Tailgate fitted to Cab Chassis.
• Chain Down Points: Chain down points mounted within flooring for machinery.
• Tool Box: Tool box fitted beneath tray side.
